I'm in 87 yj starter hell! Please help!

Discussion in 'Wrangler YJ (1986-1995)' started by Naughty Scotty, Aug 13, 2016.

  1. Aug 13, 2016 at 8:25 AM
    #1
    Naughty Scotty

    Naughty Scotty [OP] New Member

    Joined:
    Aug 13, 2016
    Member:
    #76
    Messages:
    3
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    87 Jeep Wrangler 6 cyl laredo
    hi, I have a 87 yj that goes through starters and flywheels like there's no tomorrow! The mechanic I have now is pretty good and fixing a lot of other problems ( which I'll get into later, after I fix this headache) but he can't find the right starter for. It. He says the ones he keeps getting from parts houses are not the right ones. Something to do with the distance the bendix travels into the flywheel? It either goes too far or not far enough? Does any of this crap make any sense? Please help!

  2. Aug 13, 2016 at 9:02 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine Moderator

    Joined:
    Jul 19, 2016
    Member:
    #2
    Messages:
    3,797
    Gender:
    Male
    Welcome! What engine do you have?

  3. Aug 13, 2016 at 3:15 PM
    #3
    Naughty Scotty

    Naughty Scotty [OP] New Member

    Joined:
    Aug 13, 2016
    Member:
    #76
    Messages:
    3
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    87 Jeep Wrangler 6 cyl laredo
    Thank you. It it has the straight 6 cylinder I'm sort of having a brain fart. I believe it's the 4.2?

  4. Aug 14, 2016 at 3:21 PM
    #4
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine Moderator

    Joined:
    Jul 19, 2016
    Member:
    #2
    Messages:
    3,797
    Gender:
    Male
    Are the starters you are installing OEM?

  5. Sep 2, 2016 at 6:28 AM
    #5
    Redindian

    Redindian Member

    Joined:
    Sep 2, 2016
    Member:
    #155
    Messages:
    9
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    91 YJ base
    mild lift, 33s, original motor and driveline
    You could also have a bent flywheel. Take it down, lie it flat on a "flat" table and observe for war-page.
    Are all your bell housing bolts run up? Look in there to see if you have any gaps between the bell housing and the motor end.
    Yes also check to ensure you have an OEM starter. Don't be tight and buy a $25 to 35 lesser starter...that is exactly what you'll get.

    OFFGRID, bostonbilly and chris4x4 like this.
  6. Sep 2, 2016 at 11:17 AM
    #6
    C2T

    C2T Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #42
    Messages:
    763
    Gender:
    Male
    First Name:
    Richard
    Helena, Montana
    Vehicle:
    Jeep
    2.5" AEV Dual Sport lift, 35" Treadwright Guard Dogs, Black Rock Wheels, AEV Front & Rear Bumpers with Tire Carrier, Fuel Caddy 10 gal. Aux. fuel tank, Warn 9.5ti, 125' synthetic winch line, front axle skid, 20" LED light bar , Bilstein Shocks, steel steering skidplate,
    Ok, I am going to toss an opinion out...take it for what it may be worth or not worth.

    A parts house often make mistakes. However, they do not generally make them over and over let alone keep making the same two mistakes (too long/short) over and over. And when you start having the exact same issue with two different parts houses...well, I think the problem lies somewhere other than the parts houses.

    I have seen flywheels not installed correctly (backwards) or bent as Matt says above. Hell, I even saw a crankshaft issue once.
    I have seen the wrong flywheel used a few times over the years.

    Remember, it only takes one bad tooth on the flywheel to start eating things.

    OFFGRID likes this.
  7. Sep 2, 2016 at 11:23 AM
    #7
    bostonbilly

    bostonbilly Well-Known Member

    Joined:
    Jul 25, 2016
    Member:
    #12
    Messages:
    109
    Gender:
    Male
    Boston
    Vehicle:
    2015 Sahara JKU
    To add to what others have said I recommend OEM starters. Also did your mechanic change bother the starter and flywheel together? If one has a bad tooth and you mate a new part to it it will ruin the new part quickly. Bite the bullet and install factory parts would be my suggestion

    C2T likes this.
  8. Oct 5, 2016 at 10:58 AM
    #8
    OFFGRID

    OFFGRID Well-Known Member

    Joined:
    Oct 3, 2016
    Member:
    #317
    Messages:
    2,018
    Gender:
    Male
    First Name:
    Peter
    Houston
    Vehicle:
    1979 Jeep CJ7, 258, TH350, NP208
    Howell fuel injection, header, HEI distributor, TH350, NP208, SOA lift with YJ springs in the front & GW springs in the Rear. AMC20 with G2 1 piece chromos trussed, Dana 30 with G2 chromos and 760x ujoints and MM Stainless Hubs, Geared 4.56. Tom Woods shafts, Metal cloaks, Caged, 37" Toyo MTs.
    Did you fix the problem?

  9. Apr 22, 2019 at 11:40 AM
    #9
    geowik

    geowik Member

    Joined:
    Apr 10, 2019
    Member:
    #3062
    Messages:
    6
    Gender:
    Male
    First Name:
    George
    Tucson, Arizona, United States
    Vehicle:
    1987 Jeep Wrangler l6
    I am new to the club and wanted to say hello. I may have inherited Naughty Scotty problem here in AZ which is where he said he was from in a different post.
    I just recently purchased a 1987 Jeep Wrangler inline 6 cyl but I'm not sure if the trim is the Laredo?
    I bought it cheap enough and knew that I would need to put some time and $$ into so.. I have already replaced the flywheel, clutch kit, seals on transfer case and 5 speed tranny, starter motor and solenoid, u-joints etc.
    The previous owner had 1/2" spacer washers between the starter and bell housing so it was not even bolted up flush to the bell housing. After reinstalling with all new parts, it appears that I need to install some type of shim plates because after starting the motor the bendix gear is still rubbing against the flywheel. I am going to measure the distance today when I get home and put some gear paint on the bendix gear to see how the gears are meshing. After much research it appears this is a very common problem with non OEM starters. I also have read about some people going through 2-3 starters per year - wow!! I hope to do better than that with all new parts??
    Does anyone know of a good online place to purchase OEM equipment for these jeeps? Thanks for any help. George

  10. Apr 22, 2019 at 12:19 PM
    #10
    Prerunner1982

    Prerunner1982 Well-Known Member

    Joined:
    Aug 4, 2017
    Member:
    #1745
    Messages:
    957
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    93 XJ 2 door, 97 XJ 4 door, 00 XJ 4 door
    Holy Crap what are the odds...
    Hello George, welcome from Oklahoma.
    I remember back in the day replacing a starter on my old Chevy 350 it actually came with shims, I don't believe any of my Jeep 4.0 starters have come with any and I have never needed any.
    Knock on wood I haven't had an issue with parts store starters.
    I really don't have any suggestions at this point. Let us know how it goes.

  11. Apr 23, 2019 at 12:25 PM
    #11
    geowik

    geowik Member

    Joined:
    Apr 10, 2019
    Member:
    #3062
    Messages:
    6
    Gender:
    Male
    First Name:
    George
    Tucson, Arizona, United States
    Vehicle:
    1987 Jeep Wrangler l6
    So I measured the depth of the flywheel from the bell housing vs the depth of the bendix gear and found that when installed the bendix gear would overlap on the flywheel ring gear by 1/4" without even being engaged. I went back to parts store and found that a starter for an 1988 Wrangler was the proper fit and works great. So apparently the engine has been changed out to at least an 88. It is COVERED in grease/oil as the previous owner just kept adding oil rather than fixing the valve cover oil leak. Im thinking of putting an aluminum valve cover on because I not even sure if this steel one has been bent from over tightening or not. I need to find a way to identify the engine if someone knows how.

  12. Apr 23, 2019 at 12:43 PM
    #12
    Prerunner1982

    Prerunner1982 Well-Known Member

    Joined:
    Aug 4, 2017
    Member:
    #1745
    Messages:
    957
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    93 XJ 2 door, 97 XJ 4 door, 00 XJ 4 door
    On the passenger side of the block between Cylinders 2 & 3 there should be a flat area with a date stamp.
    [​IMG]

    JKBob 25 likes this.
  13. Apr 23, 2019 at 12:44 PM
    #13
    Prerunner1982

    Prerunner1982 Well-Known Member

    Joined:
    Aug 4, 2017
    Member:
    #1745
    Messages:
    957
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    93 XJ 2 door, 97 XJ 4 door, 00 XJ 4 door
    Glad you seem to have figured out the starter issue.

  14. Apr 23, 2019 at 1:42 PM
    #14
    geowik

    geowik Member

    Joined:
    Apr 10, 2019
    Member:
    #3062
    Messages:
    6
    Gender:
    Male
    First Name:
    George
    Tucson, Arizona, United States
    Vehicle:
    1987 Jeep Wrangler l6
    Yeah thanks for the help, BTW and of course this starter motor costs nearly $200 including a $68 core and me without a core. I can return the other starter but they wont accept the one I already turned in as a core because its a different style. I should have just started off asking for the most expensive as usual. The newer starter has a solenoid on it rather than on the firewall. I just wired it in a series for now until I figure out how to rewire it. There are more terminals on the solenoid thats on the firewall. There used to be just one cable from the ignition side of the solenoid on the firewall to the starter and the newer starter has 3 terminals. One for the battery cable, one for the ignition wire and I think the other larger post is just a ground from the armature to the solenoid? Anyone have an idea?

  15. Apr 23, 2019 at 1:58 PM
    #15
    Prerunner1982

    Prerunner1982 Well-Known Member

    Joined:
    Aug 4, 2017
    Member:
    #1745
    Messages:
    957
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    93 XJ 2 door, 97 XJ 4 door, 00 XJ 4 door

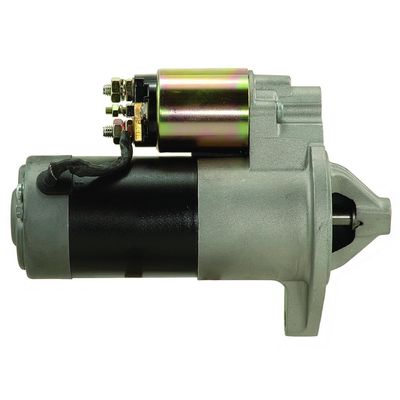

    Does it look like this?
    [​IMG]

    If so the big lug is power from the battery and the small lug is the signal from the ignition to activate the solenoid.
    Your current solenoid on the fire wall should have similar connections but feel free to post up a picture of your current solenoid for better clarification.

  16. Apr 23, 2019 at 2:26 PM
    #16
    geowik

    geowik Member

    Joined:
    Apr 10, 2019
    Member:
    #3062
    Messages:
    6
    Gender:
    Male
    First Name:
    George
    Tucson, Arizona, United States
    Vehicle:
    1987 Jeep Wrangler l6
    Yes it looks like that. The existing starter relay solenoid on the firewall looks like this [​IMG] Is has the cable from the the battery along with 3 other wires to the left large post, the small left post is the ignition which I ran a jumper to the new starter solenoid, it has small wires to the right side small post and then the other cable to the starter on the right side. Im not sure what to do with the small wires on the right side small post. It is working fine for now so maybe I leave it???

  17. Apr 23, 2019 at 7:19 PM
    #17
    JKBob 25

    JKBob 25 Well-Known Member

    Joined:
    Mar 22, 2017
    Member:
    #1197
    Messages:
    3,535
    Gender:
    Male
    First Name:
    Bob
    Jersey Shore, NJ
    Vehicle:
    2016 JK Wrangler Sport
    2" Superlift kit. 315/ 70/17.
    Wow.....An almost 3 year old thread relived. And a fix. This is why members should post up their fixes. It just may help out another in the future. Dine and dash members suck.

    Thanks for posting up your fix @geowik . :thumbsup:

    aggrex likes this.
  18. Apr 24, 2019 at 8:21 AM
    #18
    Prerunner1982

    Prerunner1982 Well-Known Member

    Joined:
    Aug 4, 2017
    Member:
    #1745
    Messages:
    957
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    93 XJ 2 door, 97 XJ 4 door, 00 XJ 4 door
    Here we go. Per AllData, forgot I could look up wiring diagrams. It looks like the other wires on the right side small post go to the "Engine Controls" (??) and to the Backup NSS (clutch switch on a manual?).
    The other wires on the left side large post with the wire from the battery sound like something a previous owner added to power accessories, trace them and see where they go.
